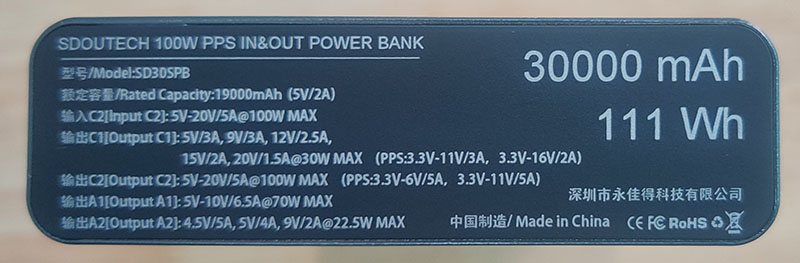

Here is the details of the SD30SPB POWER BANK.
The size of the power bank is :178mm x 88mm x 28mm
The weight is 640g [22.6 oz]

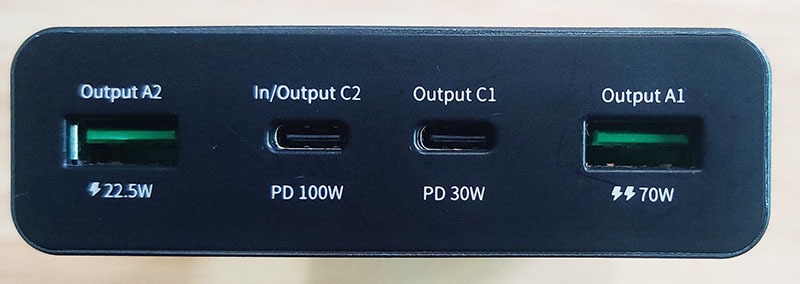

It have 4 ports, 2 USB-C, 2 USB-A ,total output is 200W.
A1: 4.5V/5A, 5V/5A, 9V/2A,10V/6.5A @70W MAX [OUT]
C1: 5V/3A, 9V/3A, 12V/2.5A,15V/2A, 20V/1.5A@30W MAX [OUT]
(PPS:3.3V-11V/3A,3.3V-16V/2A)
C2: 5V/3A, 9V/3A, 12V/2.5A,15V/2A, 20V/1.5A,20V/3A,20V/5A@100W MAX
(PPS:3.3V-6V/5A,3.3V-11V/5A) [IN&OUT]
A2: 4.5V/5A, 5V/4A, 9V/2A,12V/1.5A,10V.2.5A @ 25W MAX[OUT]
C1+A2=30W [If the C1&A2 charging same time , the max power is 30W]
A1+C1+C2=200W
It will automatically charge after insert the port,

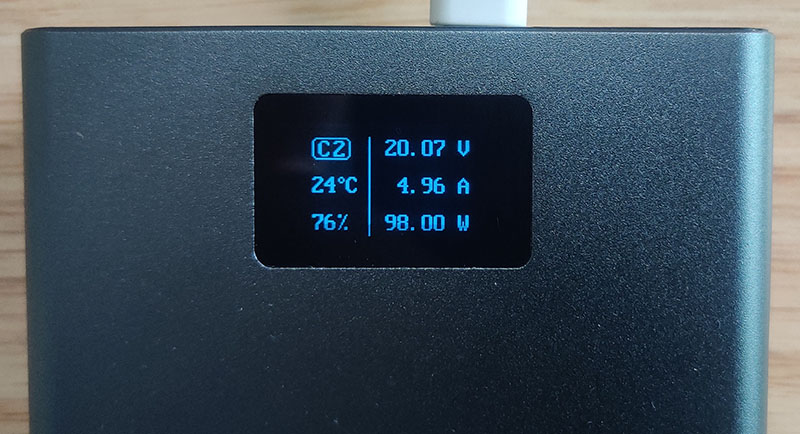

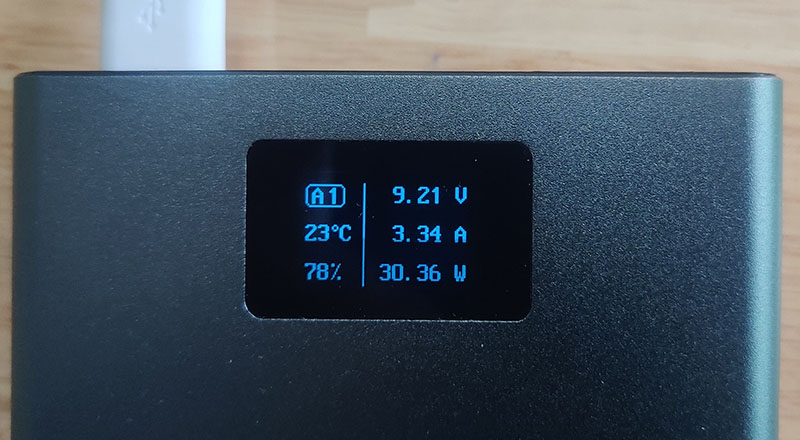

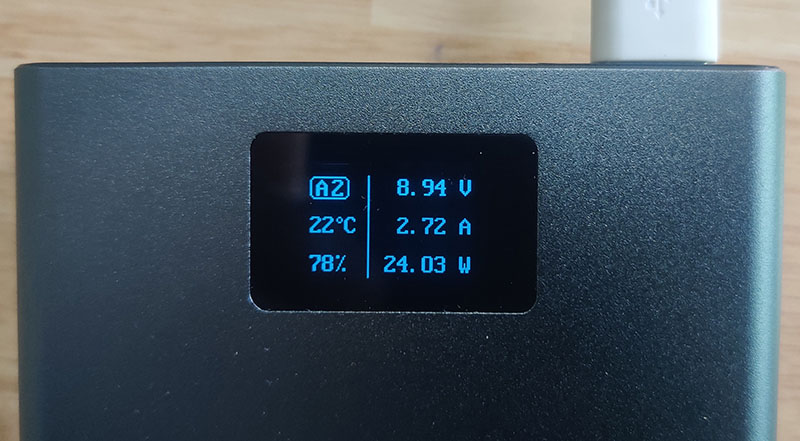

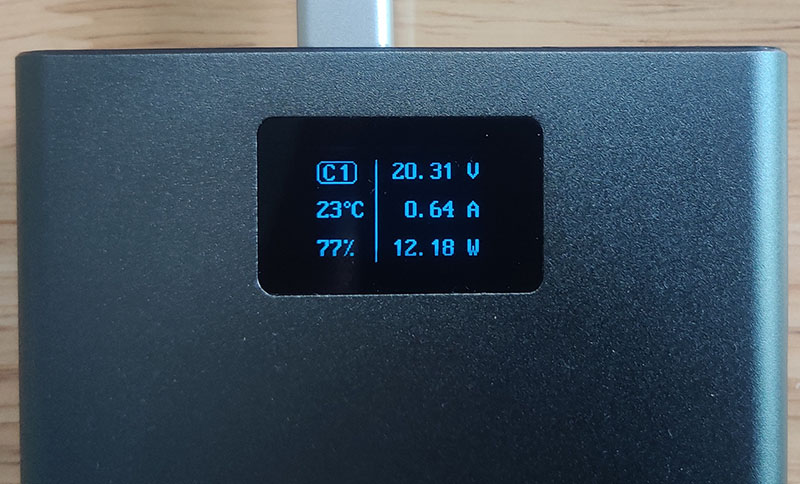

Then the screen shows the
Port & Temperature & Battery & Voltage & Ampere & Power
If the power bank charge 3 or 4 device in same time, it will show each port at the screen.
The total power , temperature , the Voltage,ampere of each port.
